Down Lights > Diamond Star
Diamond Star - 30w
Visual Comfort India Pvt. Ltd manufacture and supply high brightness Down lights in various colors like yellow, white; with various power ranges in LED Down lights. Long life working, different watts is available 3W, 6W, 8W, 9W, 12W, 15W, 25W, 30W, 35W, 60W, 80W. These Lights are accepted in panel board, heavy industrial machinery, and high-rise electricity company.
Specifications
| Input Voltage | AC 100 V - 265 V |
| Frequency Range | 50 - 60 Hz |
| LED Brand | Cree/BRIDGELUX/EPISTAR/CITIZEN |
| Beam Angle | 15, 24, 48, 60 degrees |
| Color Rendering Index (CRI) | >70 |
| Power Factor | >0.95 |
| IP Degree | IP 20 |
| LED type | SMD 2835 |
| Correlated Color Temperature (CCT) | 3000K (Warm White), 6000K (Cool White) |
| Total Harmonic Distortion | < 15% |
| Working Temperature | -20 to +50 Degree Celsius |
| LED Luminous Efficiency | 90-110LM/W |
| Life | 50,000hrs |
| Surge Protection | upto 4KV |
| LED Driver | Visual Comfort Driver |
| Warranty | 3years |

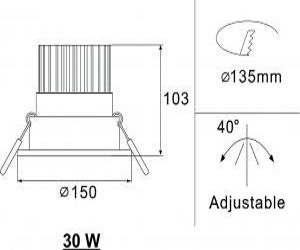

Technical Diagram
30 Watt
Download
